10 / 100 / 1000BASE-T Copper SFP Transceiver RJ45 100m Module

Name: 10 100 1000BASET Copper SFP Transceiver RJ45 100m Module
Brand: NUFIBER
Price: 1 USD

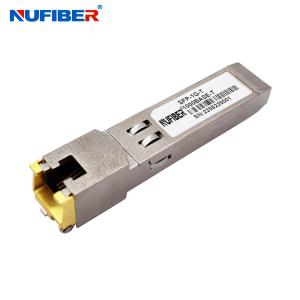

Buy cheap 10 / 100 / 1000BASE-T Copper SFP Transceiver RJ45 100m Module product

Brand Name : NUFIBER

Model Number : SFP-GE-T

Certification : CE FCC Rohs

Place of Origin : China

MOQ : 1 piece

Payment Terms : L/C, T/T, Western Union,Credit Card

Supply Ability : 10,000 pcs per month

Delivery Time : Within 1-3 work days

Packaging Details : 10pcs/plastic bag, 500pcs/carton

Data Rate : 1.25Gb/s

Distance : 100m

Connector : Rj45

DDM : Support

Power Supply : 3.3V

Working Temperature : 0~70℃

Compatibility : Cisco, HP, Huawei, Finisar...

Manufacturer : Yes

Contact Now

Customized 10/100/1000BASE-T SFP Copper RJ-45 100m Transceiver Module Copper SFP Transceiver

Description

10/100/1000 copper SFP transceiver is high performance, cost effective module compliant with the Gigabit Ethernet and 10/100/1000BASE-T standards as specified in IEEE 802. 3-2002 and IEEE 802.3ab, which supporting 10/100/1000Mbps data- rate up to 100 meters reach over unshielded twisted-pair category 5 cable.

The GLC-T10/100/1000 supports 10/100/1000 Mbps full duplex data-links with 5-level Pulse Amplitude Modulation (PAM) signals. All four pairs in the cable are used with symbol rate at 250Mbps on each pair.

The GLC-T10/100/1000 provides standard serial ID information compliant with SFP MSA, which can be accessed with address of A0h via the 2-wire serial CMOS EEPROM protocol. The physical IC can also be accessed via 2-wire serial bus at address ACh.

Features

Up to 1.25Gb/s bi-directional data links
Hot-pluggable SFP footprint
Extended case temperature range (-40°C to +85°C )
Fully metallic enclosure for low EMI
Low power dissipation
Compact RJ-45 connector assembly
Detailed product information in EEPROM
+3.3V single power supply
Access to physical layer IC via 2-wire serial bus
10/100/1000 BASE-T operation in host systems with SGMII interface
Compliant with SFP MSA
Compliant with IEEE Std 802.3TM-2002
Compliant with FCC 47 CFR Part 15, Class B
RoHS Compliant Products

Applications

1.25 Gigabit Ethernet over Cat 5 cable
Switch/Router to Switch/Router Link
High speed I/O for file severs

Optical Parameters

Parameter	Symbol	Min.	Typical	Max.	Units	Notes/Conditions
Supply Current	Is		320	375	mA	1.2W max power over full range of voltage and temperature. See caution note below
Input Voltage	Vcc	3.13	3.3	3.47	V	Referenced to GND
Surge Current	Isurge		30		mA	Hot plug above steady state current. See caution note

Parameter	Symbol	Min.	Max.	Units	Notes/Conditions
SFP Output LOW	VOL	0	0.5	V	4.7k to 10k pull-up to host_Vcc.
SFP Output HIGH	VOH	host_Vcc -0.5	host_Vcc + 0.3	V	4.7k to 10k pull-up to host_Vcc.
SFP Input LOW	VIL	0	0.8	V	4.7k to 10k pull-up to Vcc.
SFP Input HIGH		2	Vcc + 0.3 V	V	4.7k to 10k pull-up to Vcc.

Transmission Line-SFP
Parameter	Symbol	Min.	Typical	Max.	Units	Notes/Conditions
Line Frequency	fL		125		MHz	5-level encoding, per IEEE 802.3
Tx Output Impedance	Zout,TX		100		Ohm	Differential
Rx Input Impedance	Zin,RX		100		Ohm	Differential
